Accelerate your functional safety design with Infineon¡¯s Functional Safety Self-Test Library

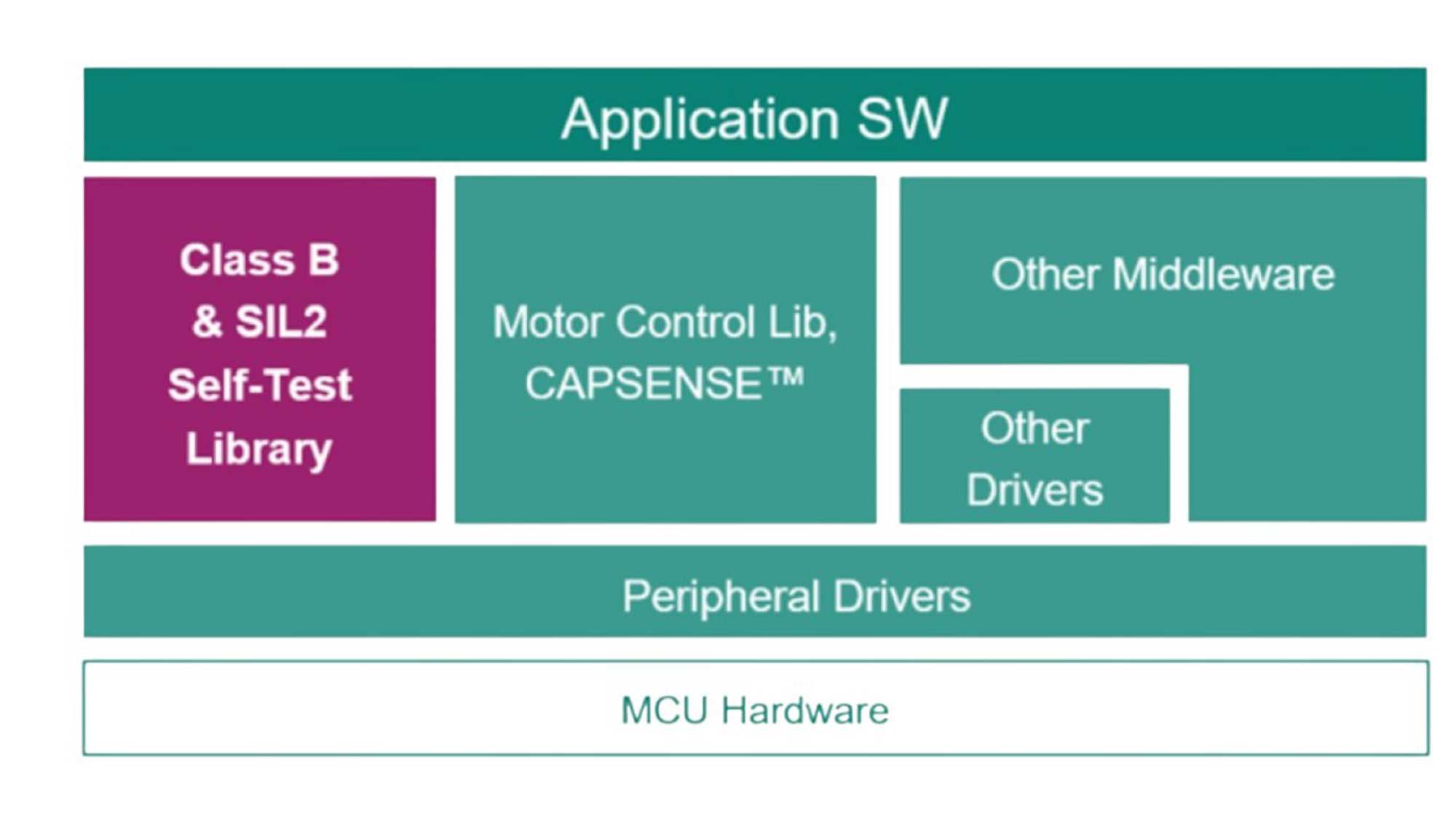

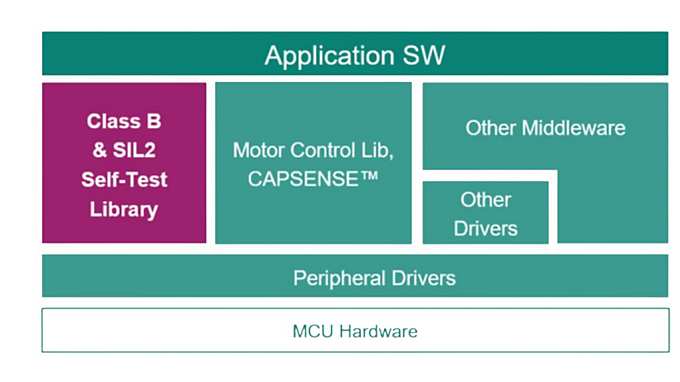

Functional safety block diagram
Functional safety block diagram
Functional safety block diagram

Infineon provides Functional Safety Self-Test Library (STL) to help customers achieve their functional safety goals. This library supports a wide range of Infineon microcontrollers and makes use of its advanced hardware features to provide functional safety mechanisms for a variety of end applications.

Together with ModusToolbox?, it provides a robust ecosystem to achieve IEC 60730 Class B and IEC 61508 SIL certifications.

Self-Test Library Key Features

  • CPU registers: Test for stuck bits
  • Program Counter: test for jumps to the correct address
  • Program Flow: checks correct firmware program flow
  • Interrupt Handling and Execution: tests proper interrupt calling and periodicity
  • Flash (invariable memory): memory corruption check
  • SRAM (variable memory): test for stuck bits and proper memory addressing
  • Stack Overflow: checks stack overflow with the program data memory during program execution
  • Digital I/O: test for pins short
  • Comprehensive Peripheral Self-Test:
    • Analog, TCPWM, CORDIC, I2C, SPI, CAN, UART loopback, and others

Supported products

  • All products

?

?

?

?

?

?

  • XMC7100
  • XMC7200

?

?

?

?

?

  • PSOC? 4000S
  • PSOC? 4000T
  • PSOC? 4100S
  • PSOC? 4100S Max
  • PSOC? 4100S Plus
  • PSOC? 4100T Plus
  • PSOC? 4500S
  • PSOC? 61
  • PSOC? 62

?

?

?

?

?

Library Support

Beyond the functional safety library, Infineon provides:

  • Application notes: describing how to make use of the library and how to address requirements of functional safety standards with the provided Self-Test Library
  • Certificates: UL certificates for the library for the given microcontroller family. You will find certificates at the end of the corresponding application note

  • Code examples: comprehensive set of code examples demonstrating the usage of functional safety library feature, directly accessible from??or ModusToolbox? New Project Creator

Learn more

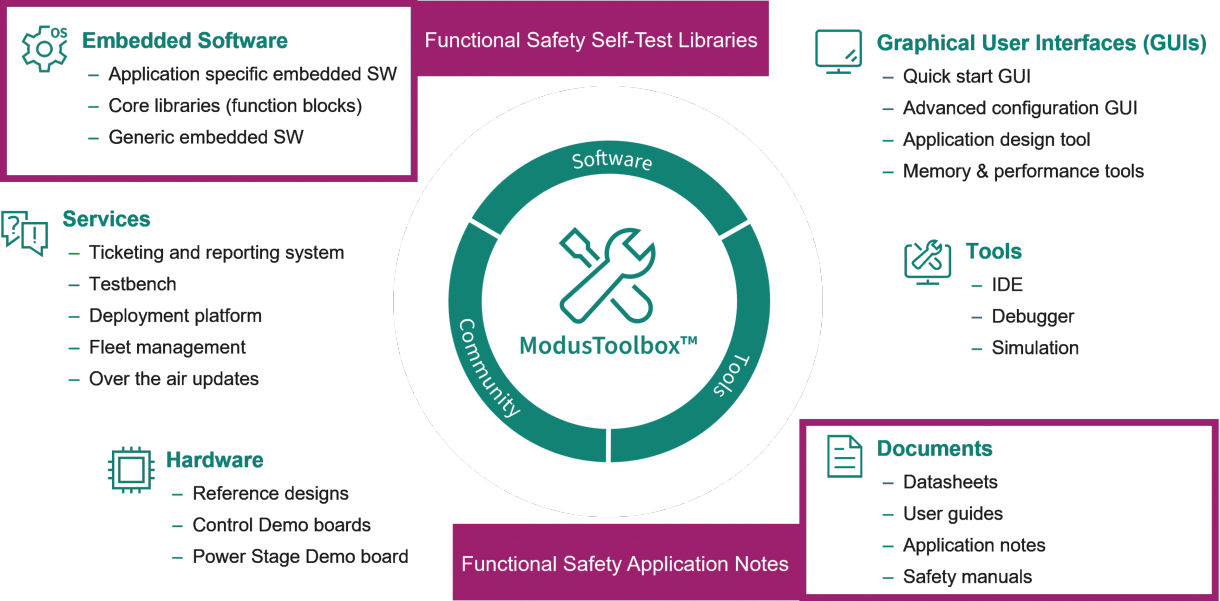

Library support
Library support
Library support

Target Applications

  • Consumer Applications: Home Appliances, Laundry machines, Cordless Vacuum Cleaner, Countertop Appliances, Power and Gardening Tools
  • Robotics: Collaborative Robot (Cobot), Humanoid Robots, Industrial Robot, Mobile Robot, Domestic Robot (vacuum, lawn, pool), Drone and Multicopter
  • Industrial applications: General Purpose Drives (GPD), Servo Drives

To get started with the Self-Test Library Follow the following Application Notes

Ask the ModusToolbox? Community

  • Infineon Developer Community is available 24/7 for you to connect and network with engineers across the globe. Get help from Infineon support engineers, and expert members to solve your design challenges anytime, from anywhere, in any topic, and in your preferred language.
