TLE4971_MS2GO

XENSIV? - TLE4971 MS2GO Kit for automotive current sensor
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4971_MS2GO
TLE4971_MS2GO
ea.
User Manual

Product details

  • Applications
    On-Board Charger (OBC), Drives / Servo / Motor Control / Inverter / eScooter / eBike / LEV / EESM, Current monitoring, Overload and over-current detection
  • Description
    TLE4971 MS2GO is a current measurement evaluation tool capable to measure currents in one phase systems up to 25A
  • Device
    TLE4971
  • Family
    Current sensors
Recommended
OPN
TLE4971MS2GOTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

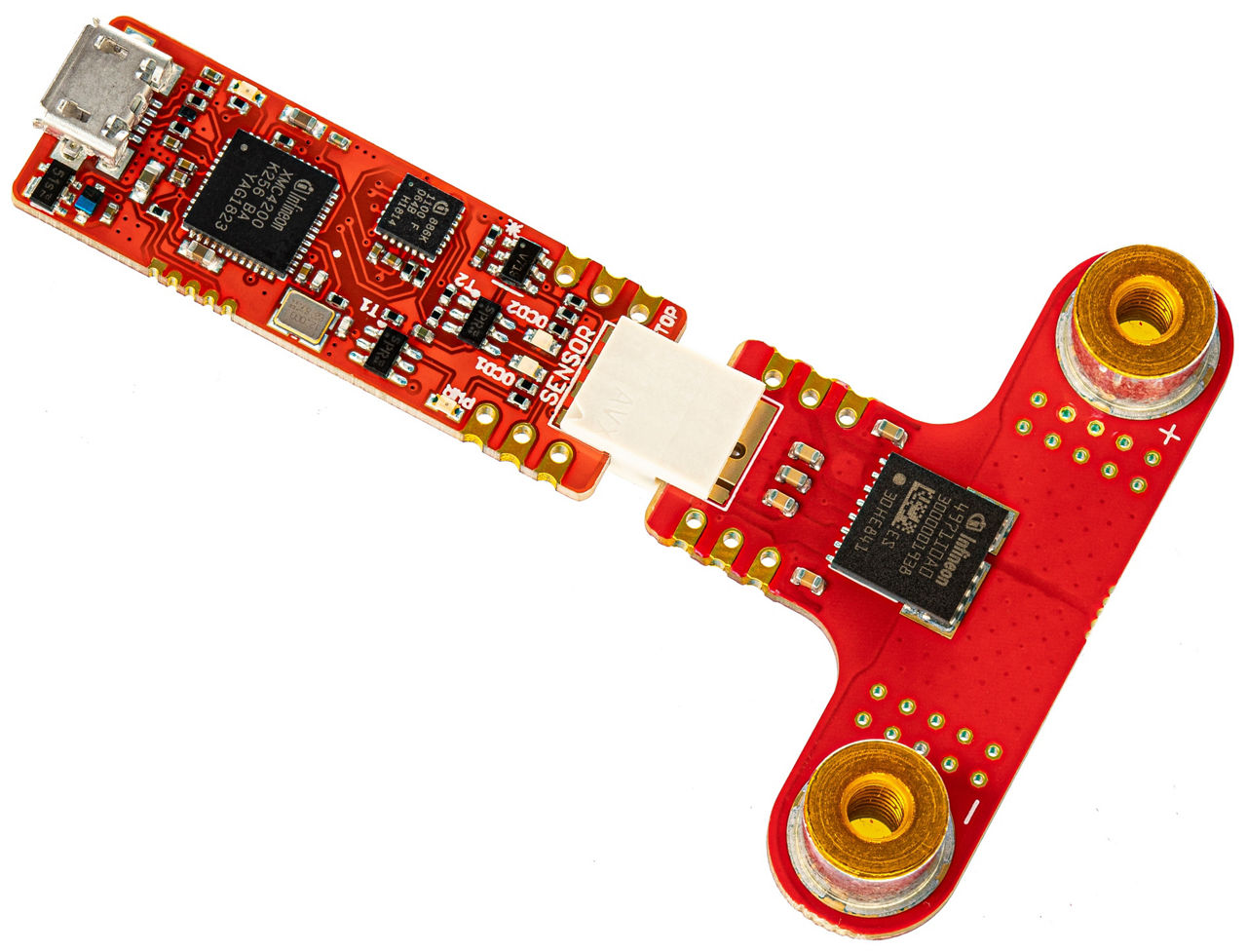

The XENSIVTM TLE4971MS2GO is a current measurement evaluation tool capable of measuring currents in single-phase systems up to 25 A. While the TLE4971 MS2GO does not offer programmability features, all programming features can be explored via RAM settings for evaluation purposes. This board can be used with the TLx4971 Current Sensors Evaluation App, available via product registration. Follow the product registration button to access the app.

Features

  • Sensor board (top): Incorporating the?TLE4971-A025N5-U-E0001?automotive current sensor (equipped with M4 screw connectors for high current capabilities < 25A)
  • MCU Board: this board is equiped with an XMC1100? used as target MCU and an XMC4200 used as debugger MCU. The MCU board? is connected to the senosr board via an in-plane edge conenctor. The design implements the sensor application circuit and hosts a firmware that will interface the sensor (ADC readouts, test-mode implementation & register setttings)
  • Ziplock bag with: 2xM4 screws, 1 PCB edge connector (for connecting the sensor board to the adapter board in the Shield2Go formfactor), pin headers (male & female)
