Optimized for High Current Automotive MOSFET Applications

The TO-Leadless (TOLL)?(HSOF)?package is optimized for high current automotive applications, such as Power Steering, Brushless DC-Drives, Battery Management, Battery Safety Switch. TOLL is a perfect solution for high power applications, where highest efficiency, outstanding EMI behavior, best thermal behavior in combination with space reduction are required.?


The TO-Leadless package is designed for high currents up to 300A. In combination with Infineon¡¯s latest OptiMOS? automotive silicon technology, TOLL offers very low RDS(on) levels. This enables reduction in the number of parallel MOSFETs in all high current applications and increases power density.

Compared to D?PAK 7 pin, the new TOLL shows a substantial reduction in footprint of 30%. Additional, the 50% reduced height offers a significant advantage in applications where compact design is required.

Moreover low package parasitic inductances result in an improved EMI behavior. Further, a 50% bigger solder contact area avoids electro-migration at high current levels, which results in improved reliability. This TOLL product is AEC-Q101 qualified and 100% lead-free.

Key features
  • Very low RDS(on)?performance
  • Highest current capability up to 300 A
  • Very low Package Parasitics & Inductances
Key benefits
  • Reduced Paralleling & Cooling
  • Highest System Reliability
  • Reduced System Costs
  • Compact Design
Key applications
  • Electric Power Steering (EPS)
  • Brushless DC-Drives
  • Battery Management

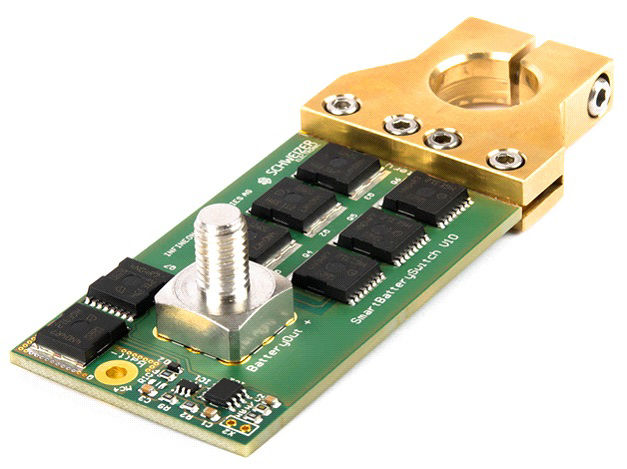

  • Battery Safety Switch
